Coding Challenge #5: Kubernetes Autoscaling Simulator

Practical coding challenge for Devops Engineers.

---

The Problem

Your Kubernetes cluster is running critical workloads, but you’re struggling to optimize resource allocation. Horizontal Pod Autoscaling (HPA) and Cluster Autoscaler are powerful, but their behavior is hard to predict under varying loads. Misconfigured autoscaling can lead to overprovisioning (wasting costs) or underprovisioning (causing downtime).

You need a tool to simulate how HPA and Cluster Autoscaler would respond to different workload patterns, helping you tune scaling policies before applying them in production.

---

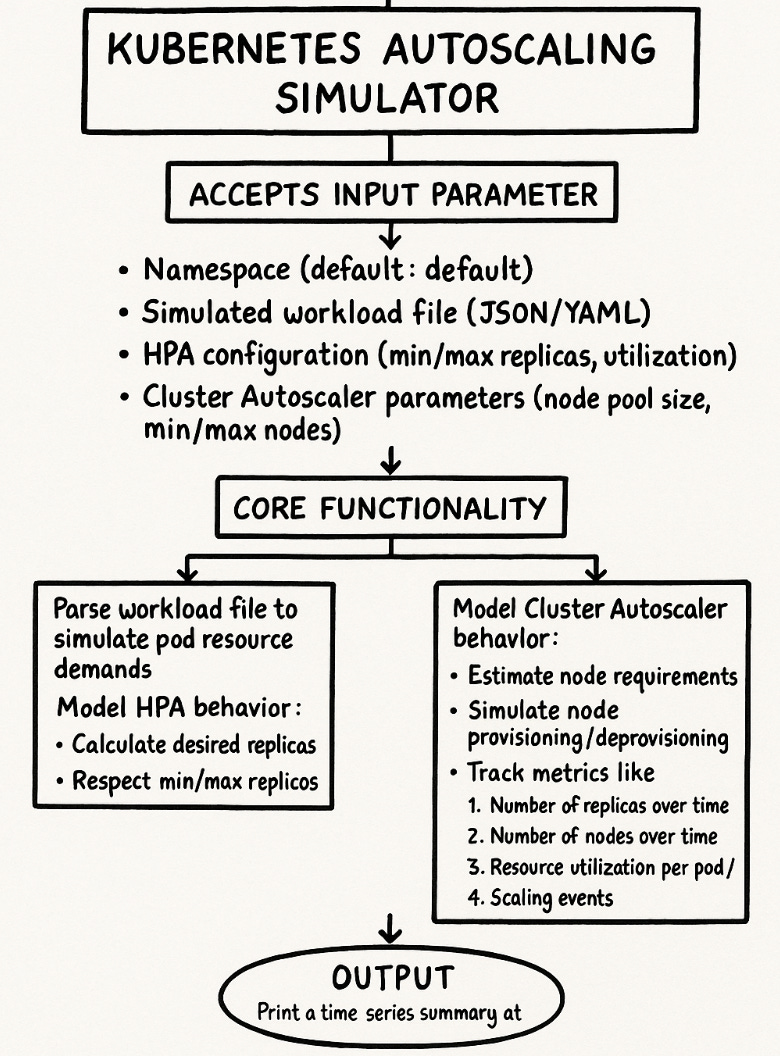

Your Objective

Write a Python or Golang script that:

1. Accepts Input Parameters

   • Namespace (default: default)

   • Simulated workload file (JSON or YAML) specifying pod resource requests and a time-series of CPU/memory load

   • HPA configuration (min/max replicas, target CPU/memory utilization)

   • Cluster Autoscaler parameters (node pool size, min/max nodes)

2. Core Functionality

   • Parse the workload file to simulate pod resource demands over time (e.g., CPU/memory spikes at specific intervals)

   • Model HPA behavior:

     • Calculate desired replicas using the formula:
       desired_replicas = ceil(current_usage / target_usage * current_replicas)

     • Respect min and max replica constraints

   • Model Cluster Autoscaler behavior:

     • Estimate node requirements based on pod resource requests and node capacity

     • Simulate node provisioning/deprovisioning within min and max node limits

   • Track and log:

     • Number of replicas over time

     • Number of nodes over time

     • Resource utilization (CPU/memory) per pod and node

     • Scaling events (upscale/downscale, node add/remove)

3. Output

   • Print a time-series summary for each simulation step (e.g., every minute), including:

     • Timestamp (simulated)

     • Pod count (current and desired replicas)

     • Node count (current and desired)

     • Average CPU/memory utilization across pods

     • Scaling events (e.g., "Scaled up to 5 replicas", "Added 1 node")

   • Visualize results using a simple ASCII chart (e.g., replica count over time)

   • Save detailed results to a CSV file (e.g., simulation_results.csv) with columns for timestamp, replicas, nodes, CPU/memory usage, and events

---

Bonus Features

• Add --all-namespaces to simulate workloads across the entire cluster

• Support custom node types (e.g., CPU and memory capacity via --node-type cpu:16,memory:64Gi)

• Simulate latency in scaling events (e.g., --scale-delay 30s for HPA and --node-provision-delay 5m for Cluster Autoscaler)

• Generate graphical plots using matplotlib (Python) or Go plotting libraries instead of ASCII charts

• Add validation for input files and warn about unrealistic configurations (e.g., resource requests exceeding node capacity)

---

Requirements

• Use standard libraries for parsing JSON/YAML and handling time-series data

• Implement HPA logic based on the Kubernetes HPA algorithm

• Model scheduling simplistically by assuming a pod fits if total resource requests do not exceed node capacity

• Handle edge cases like insufficient capacity and invalid HPA configs

---

Tips

• Use a loop to iterate over time steps in the workload file and update states

• For HPA:
  desired = ceil(current_metric / target_metric * current_replicas)

• For Cluster Autoscaler:
  Sum pod requests and divide by node capacity to estimate required nodes

• Use libraries like tabulate (Python) or tablewriter (Go) for clean output

• Test with various workload patterns like steady load, spikes, or cyclical behavior

---

Example Workload File (workload.json)

{
  "pods": [
    {
      "name": "app-pod",
      "requests": { "cpu": "500m", "memory": "512Mi" },
      "load": [
        { "time": "2025-05-10T00:00:00Z", "cpu": "200m", "memory": "300Mi" },
        { "time": "2025-05-10T00:01:00Z", "cpu": "800m", "memory": "700Mi" }
      ]
    }
  ]
}

---

Why This Is Useful

• Helps predict and visualize autoscaling behavior

• Avoids costly overprovisioning and prevents outages due to underprovisioning

• Provides a safe environment to test scaling configurations

• Valuable for capacity planning and DevOps training

---
